Thermal Cycler GE Series

GE Series Thermal Cycler | Bio-Gener Technology

Exclusive Distributor in Iran: Fardad Azma Rad Co.

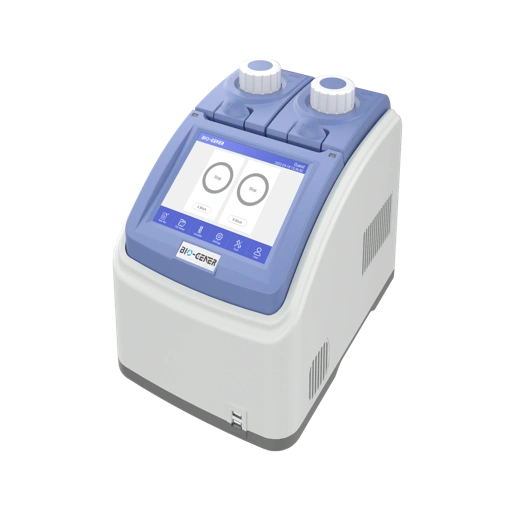

The GE Series Thermal Cycler by Bio-Gener Technology (China) is a new-generation PCR system designed for high-speed, accurate, and reliable DNA amplification.
Equipped with long-life Peltier heating units, Android OS, and an intuitive color touchscreen interface,
the GE Series combines precision, flexibility, and ease of operation — ideal for molecular biology, genetics, and clinical diagnostics.

🔬 Key Features

Long-life Peltier heating modules with 3 independent temperature zones
Max. ramping rate: 4.5–5 °C/s
Android operating system with graphical interface
Gradient range: 30–105 °C (uniformity ≤ ±0.2 °C)
Dual/Triple block options for simultaneous PCR runs
Wi-Fi, PC software, and mobile app control
Built-in data storage: >200,000 programs (Excel/JPG export)
Automatic power recovery & email alert

Parameter	Specification
Models	GE-TOUCH / GE-S / GET3X / GET3XG
Capacity	96 × 0.2 ml / 384 well / 3 × (32 × 0.2 ml)
Reaction Volume	5 – 120 µl
Temperature Range	0 – 105 °C
Max. Heating/Cooling Rate	≤ 5 °C/s
Temperature Uniformity	≤ ± 0.2 °C
Temperature Accuracy	≤ ± 0.1 °C
Gradient Temperature Range	30 – 105 °C
Gradient Spread	0.1 – 30 °C
Operating System	Android OS with 8″ TFT capacitive touchscreen
Control Interface	Wi-Fi, PC software, and mobile app
Program Storage	> 200,000 programs (supports Excel / JPG export)
Data Output	USB Flash, Wi-Fi transfer
Hot Lid	Stepless adjustable, suitable for 0.1 / 0.2 ml tubes and 96-well plates
Power Supply	100 – 240 V AC, 50/60 Hz, 600 W
Weight	~ 9 kg
Dimensions (L × W × H)	318 × 210 × 188 mm
Manufacturer	Bio-Gener Technology – China
Exclusive Distributor in Iran	Fardad Azma Rad Co.
