Thermal Cycler ELVE Series

ELVE Series | Compact Thermal Cycler by Bio-Gener

Manufacturer: Bio-Gener Technology – China
Exclusive Distributor in Iran: Fardad Azma Rad Co.
Certification: ✅ CE Certified

🧬 Product Overview

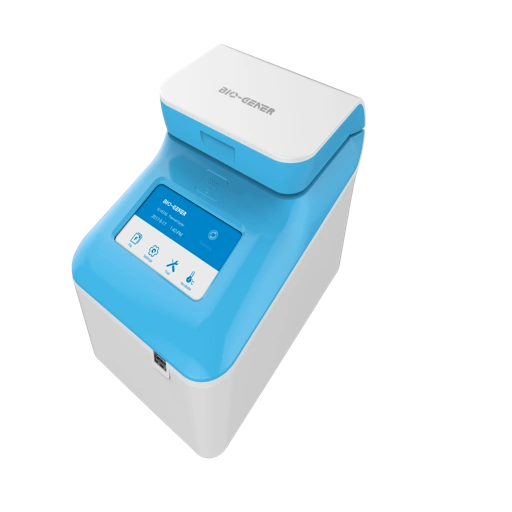

The ELVE Series Thermal Cycler by Bio-Gener Technology (China) is a next-generation compact PCR instrument featuring an Android operating system, Wi-Fi connectivity, and email notification support.
Designed for both educational and research applications, it combines fast heating (5°C/s), long Peltier lifetime (>1,000,000 cycles), and excellent temperature accuracy (≤±0.2°C) in a lightweight design.

🔬 Key Features

Long-life Peltier heating module (over 1 million cycles)
Fast ramp rate: up to 5°C/s
Temperature uniformity: ≤±0.2°C
Hot lid with adjustable height for multiple tube types
Auto restart after power recovery
Wi-Fi connectivity for remote control via PC or mobile app
Real-time display of running program and remaining time
Email notification when the experiment is finished
5-inch LCD touchscreen (800×480 pixels)
Storage for up to 10,000 programs via USB Flash
Compact and portable – ideal for teaching, clinics, and molecular research

Parameter	Specification
Models	ELVE-16 / ELVE-32G
Capacity	16×0.2ml (2×8) / 32×0.2ml (4×8)
Reaction Volume	5–80 µl
Temperature Range	4–100°C
Max Ramp Rate	5°C/s
Temperature Uniformity	≤±0.2°C
Accuracy	≤±0.2°C
Temperature Control	Block/Tube
Gradient Range	0.1–42°C (Horizontal) / 0.1–30°C (Vertical)
Hot Lid Temp.	30–110°C (adjustable)
Programs Storage	10,000+ (USB Flash)
Max Steps / Cycles	30 steps / 100 cycles
Time Increment	1–5400 s (supports Long PCR)
Auto Restart	Yes
Wi-Fi Communication	Yes
Email Notification	Yes
LCD Display	5" color touchscreen (800×480)
Power Supply	100–240V AC, 50/60Hz, 120–200W
Dimensions (L×W×H)	287×199×115 mm
Weight	2.5–2.8 kg
Manufacturer	Bio-Gener Technology – China
Exclusive Distributor in Iran	Fardad Azma Rad Co.
