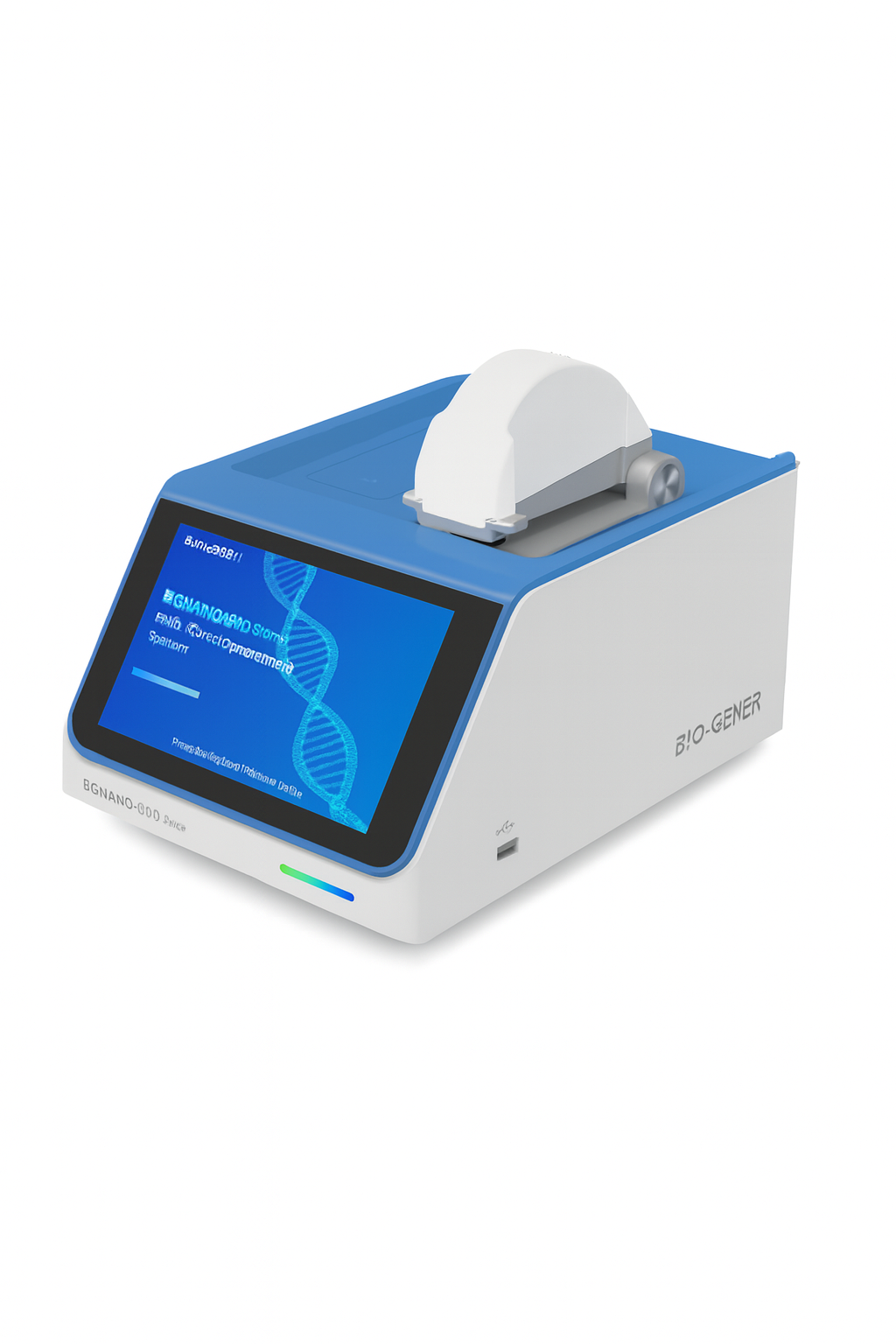

Nano Drop BGNANO-600 Series

The Nano Drop BGNANO-600 Series is a full-wavelength micro-spectrophotometer (190–850 nm) designed for fast and accurate measurement of DNA, RNA,
proteins, and cell solutions. It supports ultra-low sample volumes (0.5–2 µl) and allows direct measurement without cuvettes.

The Nano Drop BGNANO is suitable for clinical diagnostics, microbiological testing, environmental monitoring, food safety, and molecular biology research.

Key Features of Nano Drop BGNANO

Ultra-low sample volume: 0.5–2 µl
High optical precision: 0.001 mm path accuracy
Dual-channel fluorescence detection (470/525 nm & 624/692 nm)
OD600 function for bacterial growth monitoring (37 °C ± 0.5 °C; 100–1200 rpm)
7-inch capacitive TFT multi-touch display
Full-wavelength measurement: 190–850 nm
Built-in thermal printer + USB × 2 for Excel/JPG export
Fast detection speed: under 6 seconds
Data storage: over 10,000 records

Applications

DNA, RNA, and protein quantification
Microorganism detection using OD600
Fluorescence-based assays
Molecular biology and clinical laboratory workflows
Environmental and food safety testing

Fardad Azma Rad

Fardad Azma Rad Co., the official and exclusive representative of
Bio-Gener Technology in Iran, supplies the
Nano Drop BGNANO with full technical support, training, and warranty services.
We ensure diagnostic reliability and international quality standards.

Parameter	Specification
Models	BGNANO-601 / BGNANO-602
Type	Micro-Spectrophotometer
Wavelength Range	190–850 nm
Optical Accuracy	± 1 nm
Spectral Resolution	≤ 3 nm (FWHM@Hg253.7 nm)
Absorbance Range	0.04 – 550 (at 260 nm, 10 mm path equivalent)
Absorbance Accuracy	± 1% (7.332 Abs @ 260 nm)
Sample Volume	0.5 – 2 µl
Concentration Range	2 – 27,500 ng/µl (dsDNA)
Detection Time	< 6 s
Fluorescence Channels	2 (470/525 nm and 624/692 nm)
OD600 Function	Yes (with heating and stirring)
Heating Temp.	37 °C ± 0.5 °C
Stirring Speed	12 levels (100–1200 rpm)
Display	7-inch capacitive TFT touchscreen
Data Output	USB × 2 (Excel, JPG), built-in thermal printer
Power Supply	DC 12 V 5 A / 60 W
Dimensions (L×W×H)	318 × 210 × 188 mm
Weight	4.5 – 4.85 kg
Manufacturer	Bio-Gener Technology – China
Exclusive Distributor in Iran	Fardad Azma Rad Co.
